Hot Mounting Compounds/ Metallographic Mounting Consumables/ Hot
Mounting Materials
Product Description
Hot Mounting: Hot mounting is ideal solution to get high quality, uniform size
sample, as well as short process time. It is to use mounting
compounds with certain pressure, temperature to make a sample.
Specifications
| Products | Heat time (min) | Cooling time(min) | Pressure | Heat temperature | Hardness |
| PT 2231 | 4 - 6 | 2 - 3 | 100 - 300 bar | 150 - 180 °C | 65 - 70 Shore D |
| BB 2232 | 4 - 6 | 2 - 3 | 100 - 150 bar | 140 - 180 °C | 90 - 93 Shore D |
| TM 2235 | 6 - 8 | 7 - 10 | 100 - 150 bar | 160 - 180 °C | 85 - 87 Shore D |
| TM 2261 | 6 - 8 | 7 - 10 | 100 - 150 bar | 160 - 180 °C | 85 - 87 Shore D |
| EP 2237 | 5 - 7 | 4 - 6 | 100 - 300 bar | 150 - 180 °C | 90 - 93 Shore D |
| DC 2239 | 4 - 6 | 4 - 6 | 100 - 300 bar | 150 - 180 °C | 90 - 92 Shore D |
| MA 2275 | 4 - 7 | 5 - 8 | 100 - 300 bar | 150 - 180 °C | 85 - 87 Shore D |
* The above parameters is in 30mm mold.
Product Features

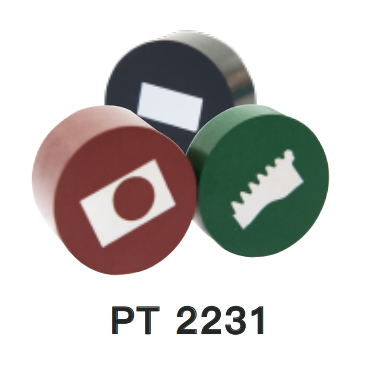

PT-2231 Phenolic Resin (Daily Use)
Description: Phenolic Resin
Components: Black/red/green grit
Properties: low price for daily use
Application: most products
| Order No: | Description | Package |
| Black | Green | Red |
| 02.01.310 | 02.01.311 | 02.01.312 | Grit | 1 kg |
| 02.01.320 | 02.01.321 | 02.01.322 | Grit | 4 kg |
| 02.01.325 | 02.01.326 | 02.01.327 | Grit | 20 kg |

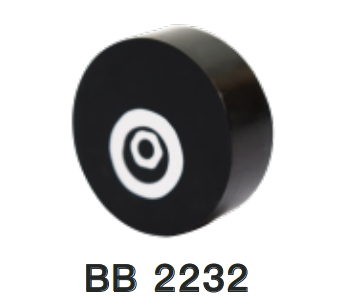

BB-2232 Phenolic Edge Protection Resin
Description: Glass fiber filled Phenolic
Components: Black Grit
Properties: extreme hardness,very good grinding and polishing
properties, does not stick on embedding instruments, non adherent.
Application: all hard materials e.g. hardened gears, hard metals
and ceramics.
| Order No: | Description | Package |
| 02.01.210 | Black, Glass fiber filled, Grit | 1 kg |
| 02.01.220 | Black, Glass fiber filled, Grit | 4 kg |
| 02.01.225 | Black, Glass fiber filled, Grit | 20 kg |
TM-2235/ 2261 Transparent
Description: Transparent/ Transparent
Components: White powder/ White powder
Properties: very thin melts rapidly/ very thin, melts rapidly, very
clear.
Application: complete embedding solution for thin layers, top layer
for specimen labeling/ complete embedding solution for thin layers,
top layer for specimen labeling.
| Order No: | Description | Package |
| 2235 | 2261 |
| 02.01.110 | 02.01.140 | White, Powder | 1kg |
| 02.01.120 | 02.01.144 | White, Powder | 4kg |
| 02.01.125 | 02.01.145 | White, Powder | 20 kg |
EP-2237 Mineral & Glass Fiber Filled Epoxy Resin
Description: Glass fiber filled Epoxy
Components: Black grit
Properties: thin,extreme hardness, optimal edge connection, good
adhesion to the specimen surface, very good grinding and polishing
properties.
Application: all hard materials e.g. hardened gears, hard metalsand
ceramics.
| Order No: | Description | Package |
| 02.01.710 | Black, Grit | 1kg |
| 02.01.720 | Black, Grit | 4kg |
| 02.01.751 | Black, Grit | 20 kg |
DC-2239 Graphite Conductivity
Description: Conductive
Components: Black-Brown Grit with powder
Properties: excellent electro conductive, voltage loss almost
eliminated completely
Application: SEM analysis
| Order No: | Description | Package |
| 02.01.910 | Black, Grit with powder | 1kg |
| 02.01.940 | Black, Grit with powder | 4kg |
| 02.01.945 | Black, Grit with powder | 20 kg |

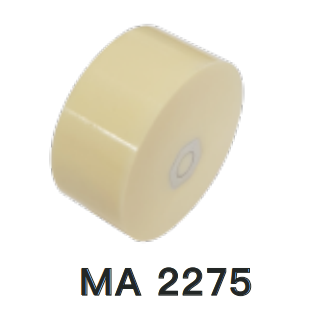

MA-2275 Mineral filled Melamine Resin
Description: Mineral filled Melamine resin
Components: Light yellow to white powder
Properties: high hardness,optimal edge connection,good adhesion to
the specimen surface, very good grinding and polishing properties,
suitable for black surface specimen.
Application: Media hard materials like normal hard metals, steel in
general, aluminum, copper materials etc.
| Order No: | Description | Package |
| 02.01.960 | Yellow, Grit | 1kg |
| 02.01.965 | Yellow, Grit | 4kg |
| 02.01.970 | Yellow, Grit | 20 kg |
