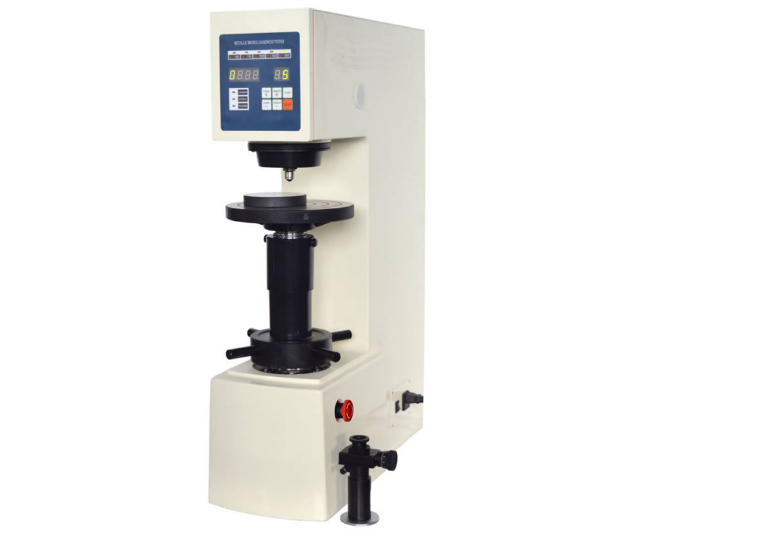

Dhb-3000 Electronic Brinell Hardness Tester
Product Description
Main Function
DHB-3000 Electronic Brinell hardness tester is a unified product
combining the precise mechanical structure and the load cell
control system. The instrument adopts the motorized test force
application without weights, and uses 0.5‰ accuracy compression
sensor to feedback and the CPU control system to automatically
compensate the test force lost during the test. The test force and
dwell time can be directly set on the touch keyboard with reliable
repeatability, precise reading and easy operation. It can be
equipped with V1.0 Brinell image automatic measuring system.
Application range
Suitable for cast iron, steel products, nonferrous metals and soft
alloys etc. Also suitable for some nonmetal materials such as rigid
plastics and bakelite etc.
Technical Specification
| Model | DHB-3000 |
| Test Force | kgf | 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf,
1500kgf, 3000kgf |
| N | 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N,
29420N |
| Test Range | 3.18~653HBW |
| Hardness Reading | Check Hardness Table |
| Microscope | 20× Reading Microscope |
| Minimum Division Value of Drum Wheel | 5μm |
| Dwell Time | 0~60s |
| Max. Height of Specimen | 220mm |
| Throat | 135mm |
| Power Supply | AC220V,50Hz |
| Execute Standard | ISO 6506,ASTM E10-12,JIS Z2243,GB/T 231.2 |
| Dimension | 545×235×755mm,Packing Dimension: 650×435×1025mm |
| Weight | Net Weight: 130kg,Gross Weight: 160kg |
Packing List
| Name | Qty | Name | Qty |
|---|
| Instrument Main Body | 1 set | 20× Reading Microscope | 1 pc |
| Ф2.5mm, Ф5mm, Ф10mm Ball Indenter | each 1 pc | Large Plane Test Table | 1 pc |
| Small Plane Test Table | 1 pc | V-shaped Test Table | 1 pc |
| Hardness Block 150~250 HBW 10/3000 | 1 pc | Hardness Block 150~250 HBW 5/750 | 1 pc |
| Fuse 2A | 2 pcs | Power Cable | 1 pc |
| Anti-dust Cover | 1 pc | Brinell Hardness Table | 1 copy |
| Usage Instruction Manual | 1 copy | | |
Payment & Shiping
RFQ
1, Min. Order Quantity
1 piece is OK.
2. How about your technical team construction?
We have professional technicians team with 10 years' experience.
3, What's our warranty?
12 months
4, Ways of payment
T/T, L/C, Pay pal, Western Union
5, Ways of shipment
EXW, FOB, DHL, FedEx, or upon your requirements
6, Are you a trader or manufacture?
We are manufacturer, owns our factory in Suzhou.
7, Can you accept OEM or ODM?
Of course,Logo is also acceptable
8, What is the delivery time?
No special requirements, can be delivered within 3 days. For
customized models, delivery time shall be discussed and confirmed
according to order
